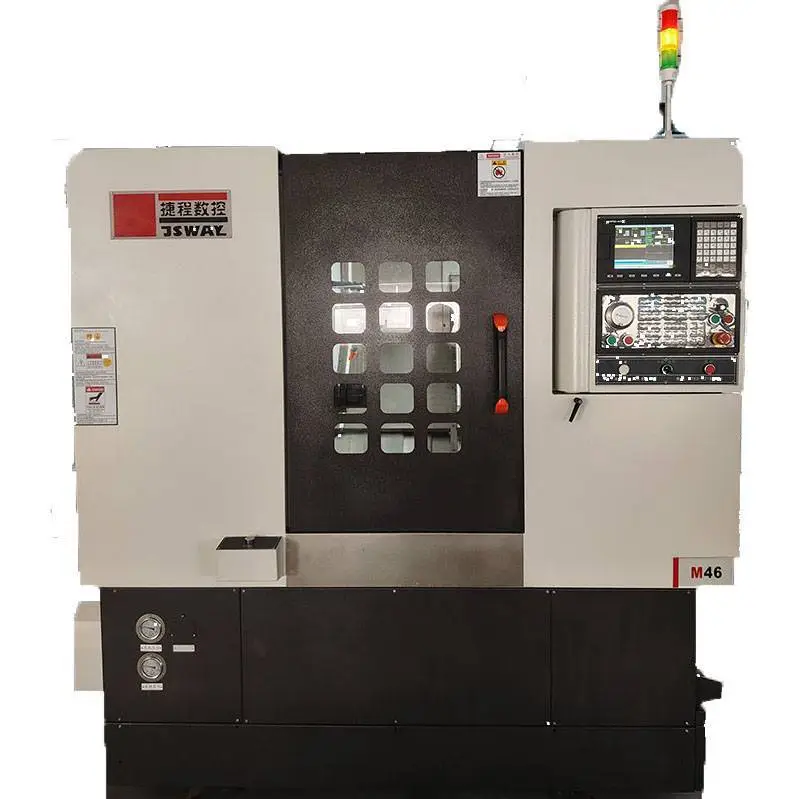

A 2-axis CNC lathe machine is the most basic configuration, featuring only the X and Z axes. It is suitable for simple turning operations. It can perform basic turning operations such as turning diameters, facing, drilling, and threading. This configuration is ideal for mass production of simple-shaped parts, such as screws, nuts, and simple shaft parts.
All our 2 axis CNC lathe models come with this 2-axis basic configuration, offering a solid foundation for a wide range of turning applications while maintaining simplicity and efficiency in operation.
√ 2 axis, simple structure, dural life.
√ Electric spindle, 4000-5000 RMP.
√ Power head.
√ Optional functions:
√ Installing a robotic arm, automatic loading and unloading.
| Model |
M46D |
M56D |
| Machine type |
Turret machine (without tailstock) |
Turret machine (without tailstock) |
| AXES |
XZ |
XZ |
| Operating system |
LNC 5800 or SYNTEC 22TA |
LNC 5800 or SYNTEC 22TA |
| Processing ability |
Maximum bar diameter (MM) |
45 |
51 |
| Maximum rotation diameter (MM) |
350 |
350 |
| Maximum processing length (MM) |
100 |
100 |
| X-axis maximum travel (MM) |
840 |
840 |
| Y-axis maximum travel (MM) |
N |
N |
| Z-axis maximum travel (MM) |
280 |
280 |
| X/Z axis fastest movement rate (M/MIN) |
30 |
30 |
| Y-axis fastest movement rate (M/MIN) |
N |
N |
| Precision |
X-axis and Z-axis repeat positioning accuracy (MM) |
0.005 |
0.005 |
| Y-axis repeat positioning accuracy (MM) |
N |
N |
| Z-axis repeat positioning accuracy (MM) |
0.005 |
0.005 |
| Motor |
Spindle power (KW) |
7.5 |
LNC 7.5
SNYTEC 11.0 |
| Spindle maximum speed (RPM) |
5000 |
5000 |
| X-axis servo motor (KW) |
1.3 |
1.3 |
| Z-axis servo motor (KW) |
1.3 |
1.3 |
| Turret tool changing motor (KW) |
|
|
| Tools |
Number of rows of knives |
8+3 |
8+3 |
| Power tools |
N |
N |
| Others |
Total machine power (KW) |
13.5 |
13.5 |
| Spindle: JSWAY customization |
|
|
| Cylinder: JSWAY customized (inch) |
|
|
| Bearing: Japan NSK or Germany FAG |
|
|
| Size (LWH, approximate, MM) |
2200x1640x2000 |
2200x1640x2000 |
| Weight (approximate, KG) |
3400 |
3400 |
Key Features of 2-axis Turret Lathe
Dual-Axis Motion: The machine tool moves along both the X and Z axes, enabling basic turning operations.
Turret Tool Post: The rotating turret accommodates a variety of cutting tools, and the machine tool automatically indexes, adjusting the correct tool to the required position for each operation.
Automated Machining: The operation sequence is pre-programmed, eliminating the need for manual tool changes during machining.
High-Volume Production: The ability to quickly and continuously perform multiple operations makes it ideal for mass production of repetitive parts.
Part Interchangeability: Automated machining processes ensure that finished parts are identical and interchangeable.
