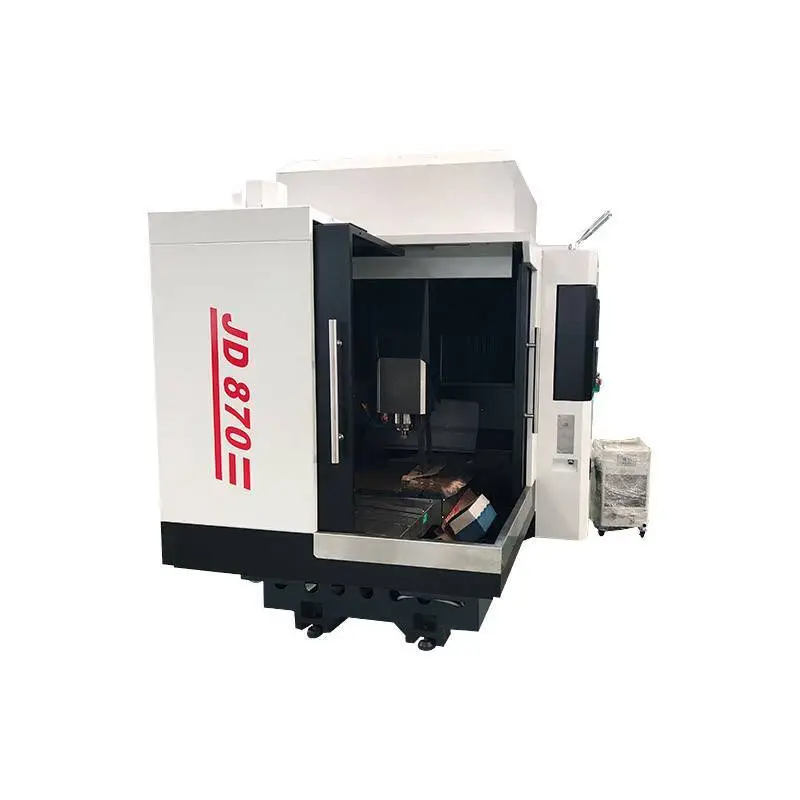

CNC Machining Center JD870 Metal VMC Milling Machine Automatic Grade
vertical CNC machining center
5.0
Brand Name:
JSWAY
Place of Origin:
China
Model Number:
JD870
Certification:
CE/ISO
OEM/ODM Availability:
NO
Delivery Time:
25days
Transportation:
By sea/train
Supply Ability:
150Set/month
MOQ:
1set
Payment Terms:
L/C, T/T,
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Price term
EXW FOB CIF
Payment term
T/T L/C30\% deposite
MOQ
1 set
Nearest port
shenzhenguangzhouzhongshan
JD870 CNC vertical machining center is a type of Computer Numerical Control VMC that has vertically oriented spindles that approach workpiece mounted on worktable from above and equipped with tool magazine system and automatic tool changer. VMC Vertical machining centers are often used for high-precision, mass-production projects for several industries. They are more extensively used in the automotive and aerospace industries due to their efficiency and ability to fabricate intricate and high-precision components.
Machine parameter
PARAMETER | |||
| MODEL | JD870 | JD650 | |
3 AXIS | X/Y/Z AXIS TRAVEL | 700*800*300 | MITSUBICHI/FANUC |
| X/Y/Z AXIS RAPID SPEED | 20M/MIN | 3 | |
| FEEDING RATE | 20M/MIN | 1000*530 | |
| SERVO MOTOR CONNECTING TYPE | 10000MM/MIN | 800 | |
| X AXIS SERVO MOTOR | DIRECT | 5-18*90 | |
| Y AXIS SERVO MOTOR | 1.3KW | 800 | |
| Z AXIS SERVO MOTOR | 1.3KW | 500 | |
| X/Y BALL SCREW LEVEL | 1.3KW(WITH BRAKE) | 700 | |
| Z AXIS BALL SCREW LEVEL | C3 | BT40 | |
| X AXIS LINEAR GUIDE WAY | C3 | 8000/10000 | |
| Y/Z AXIS LINEAR GUIDE WAY | SUPER HIGH PRECESION | belt type | |
TABLE | TABLE SIZE | 700*800 | 560 |
| TABLE LOAD | 800KG | 120-670 | |
SPINDLE | MAX SPINDLE SPEED | 18000/24000RPM | 4010/4010/4010 |
| SPINDLE TAPPER | ER32/ER40/BT30 | BOX RAIL | |
| SPINDLE MOTOR | 7.5KW | direct | |
| SPINDLE END FACE TO TABLE | 50-350MM | 7.5 | |
ACCURACY | POSITIONING ACCURACY | ±0.005MM/M | 3/3/3 |
| REPOSITIONING ACCURACY | ±0.005MM/M | 750W | |
| NC | CONTROLLER | E80/21MA/JSJD | 10/10/10 |
OTHERS | AIR PRESSURE | 6-8KG/CM² | 6kg/cm² |
| NET WEIGHT | 3.8T | 6 | |
| DEMENSION | 2400*2200*2300 | 2500*2400*2900 | |
