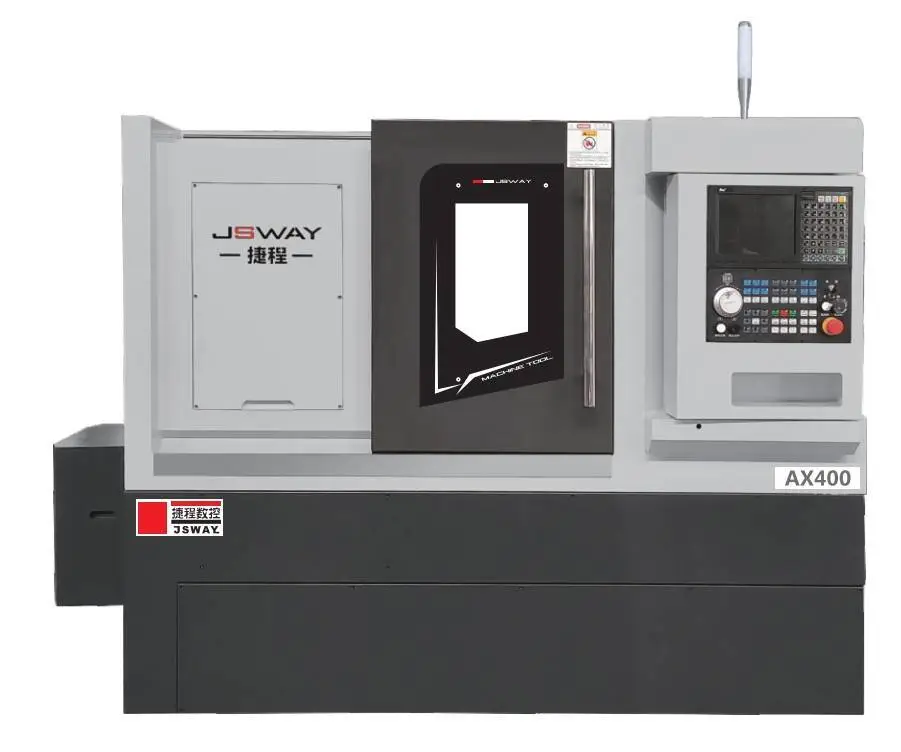

2 Axis CNC Lathe Multi-function Lathe Single Spindle AX400
Electric spindle, 4000-5000 RMP.
A 2-axis CNC lathe typically offers motion along two primary axes:
X-axis: Horizontal motion parallel to the lathe's spindle axis. It controls the position of the cutting tool along the workpiece's diameter.
Z-axis: Vertical motion perpendicular to the lathe's spindle axis. It controls the longitudinal movement of the cutting tool along the length of the workpiece.
Optional functions:
Installing a robotic arm, automatic loading and unloading.
The primary function of a 2-axis CNC lathe is to perform turning operations, where the workpiece rotates while a single-point cutting tool removes material to create cylindrical features such as diameters, tapers, grooves, threads, and contours.
| Model | AX400 | |
| Machine type | Single spindle powered turret (without Y axis) | |
| AXES | XZ | |
| Operating system | SNYTEC 220TB or FANUC OI-TR PLUS | |
| Processing ability | Maximum bar diameter (MM) | 45 |
| Maximum rotation diameter (MM) | ||
| Maximum processing length (MM) | 360 | |
| X-axis maximum travel (MM) | ||
| Y-axis maximum travel (MM) | N | |
| Z-axis maximum travel (MM) | ||
| X/Z axis fastest movement rate (M/MIN) | 30 | |
| Y-axis fastest movement rate (M/MIN) | N | |
| Precision | X-axis and Z-axis repeat positioning accuracy (MM) | 0.005 |
| Y-axis repeat positioning accuracy (MM) | N | |
| Z-axis repeat positioning accuracy (MM) | 0.005 | |
| Motor | Spindle power (KW) | 11.0 |
| Spindle maximum speed (RPM) | ||
| X-axis servo motor (KW) | 1.8 | |
| Z-axis servo motor (KW) | 1.8 | |
| Turret tool changing motor (KW) | 0.75 | |
| Tools | Number of rows of knives | |
| Power tools | 12-16 | |
| Others | Total machine power (KW) | |
| Spindle: JSWAY customization | A2-5 | |
| Cylinder: JSWAY customized (inch) | 6 | |
| Bearing: Japan NSK or Germany FAG | P4 | |
| Size (LWH, approximate, MM) | 2000x1750x1700 | |
| Weight (approximate, KG) | 3000 | |
