Guangdong JSWAY CNC Machine Tool Co., Ltd. since 2004.

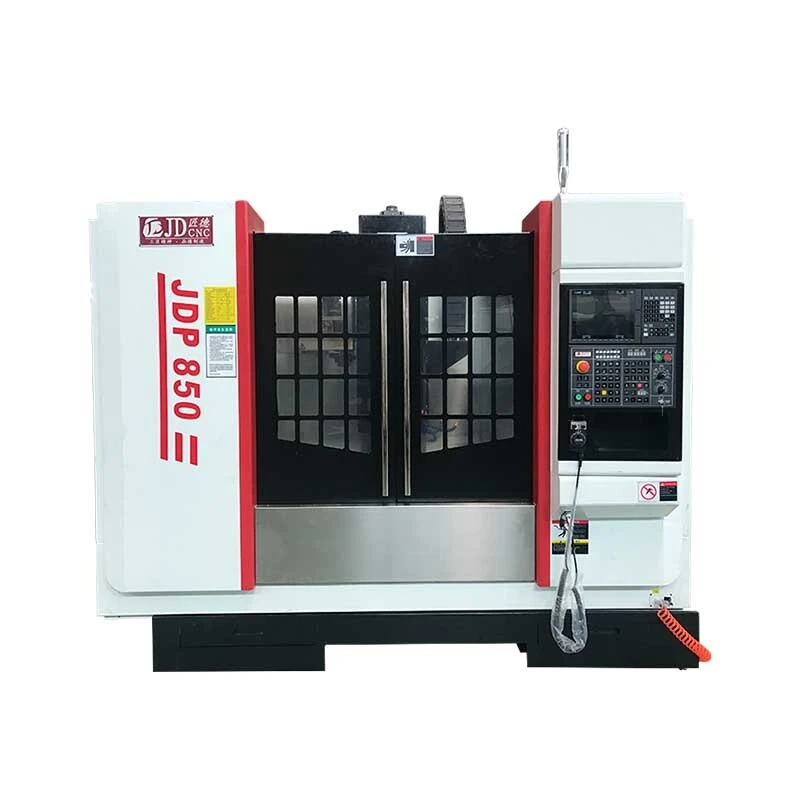

Heavy load CNC machining centers with FANUC System JDP850
hard rigidity machining center
5.0
Brand Name:
JSWAY
Place of Origin:
China
Model Number:
JDP850
Certification:
CE/ISO
OEM/ODM Availability:
NO
Delivery Time:
25days
Transportation:
By sea/train
Supply Ability:
150Set/month
MOQ:
1set
Payment Terms:
L/C, T/T,
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Price term
EXW FOB CIF
Payment term
T/T L/C30\% deposite
MOQ
1 set
Nearest port
shenzhenguangzhouzhongshan
Machine parameter
PARAMETER | |||
| MODEL | UNIT | JDP850 | |
CONTROLLER | NC | SET | MITSUBICHI/FANUC |
| TOTAL AXIS | AXIS | 3 | |
TABLE | TABLE SIZE | MM | 1050*500 |
| TABLE LOAD | KG | 700 | |
| T-SLOT | MM | 5-18*90 | |
TRAVEL | X AXIS | MM | 800 |
| Y AXIS | MM | 500 | |
| Z AXIS | MM | 500 | |
SPINDLE | SPINDLE TAPPER | MM | BT40 |
| MAX.SPINDLE SPEED | RPM/MIN | 8000/10000 | |
| SPINDLE DRIVEN TYPE | TYPE | belt type | |
| SPINDLE CENTER TO MACHINE SPINE | MM | 525 | |
| SPINDLE END FACE TO TABLE | MM | 135-635 | |
GUIDE RAIL | X/Y/Z AXIS BALL SCREW | MM | 4010/4010/4010 |
| X/Y/Z AXIS GUIDE RAIL | BOX RAIL | ||
MOTOR | X/Y/Z AXIS MOTOR CONNECT TYPE | TYPE | direct |
| SPINDLE MOTOR | KW | 7.5 | |
| X/Y/Z AXIS SERVO MOTOR | KW | 3/3/3 | |
| COOLANT PUMP MOTOR | W | 750W | |
FEEDING RATE | X/Y/Z WORKING RATE | M/MIN | 10/10/10 |
| X/Y/Z RAPID SPEED | M/MIN | 15/15/15 | |
POWER/AIR PRESSURE | AIR PRESSURE | KG/CM² | 6kg/cm² |
| POWER SUPPLY | kva | 20kva | |
ACCURACY | POSITIONING ACCURACY | MM | ±0.005/300 |
| REPOSITIONING ACCURACY | MM | ±0.005/300 | |
SPEC | NET WEIGHT | T | 5 |
| DEMENSION | MM | 2500*2400*2700 | |
