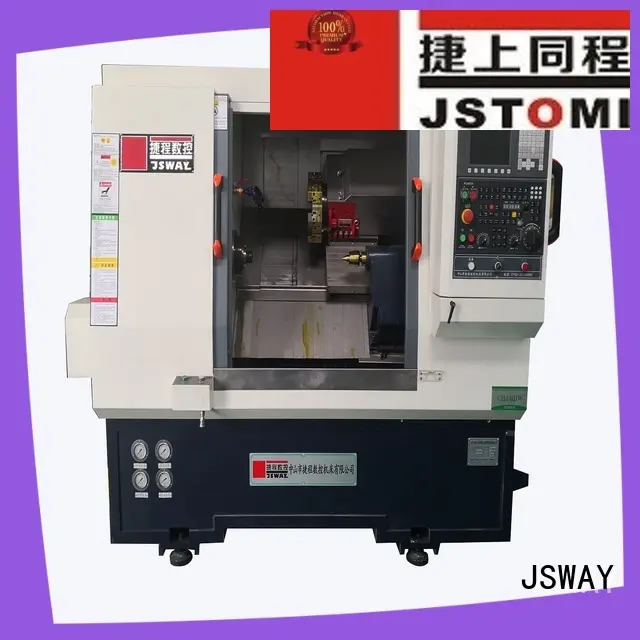

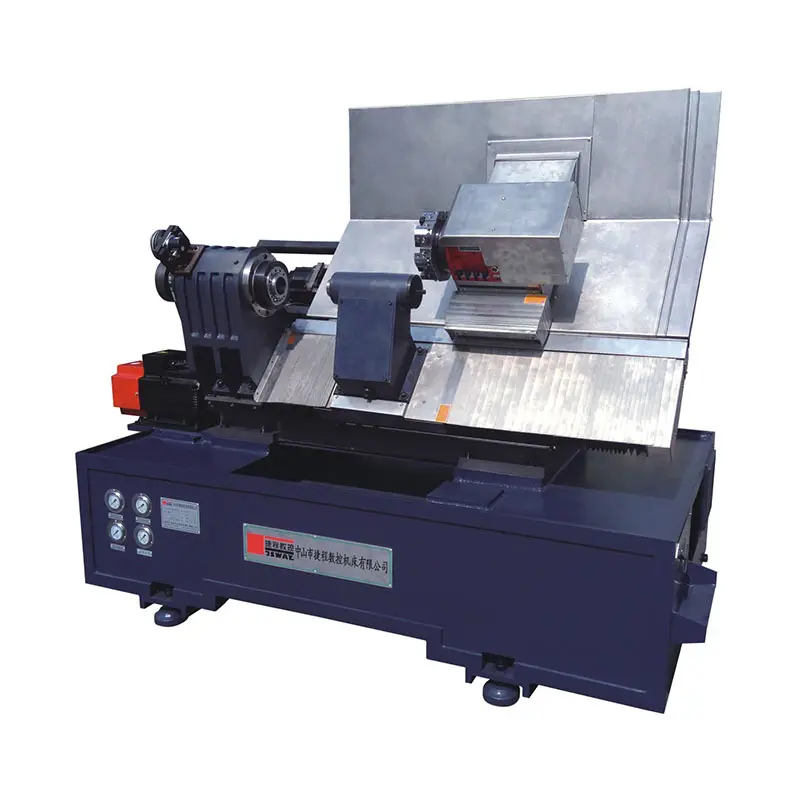

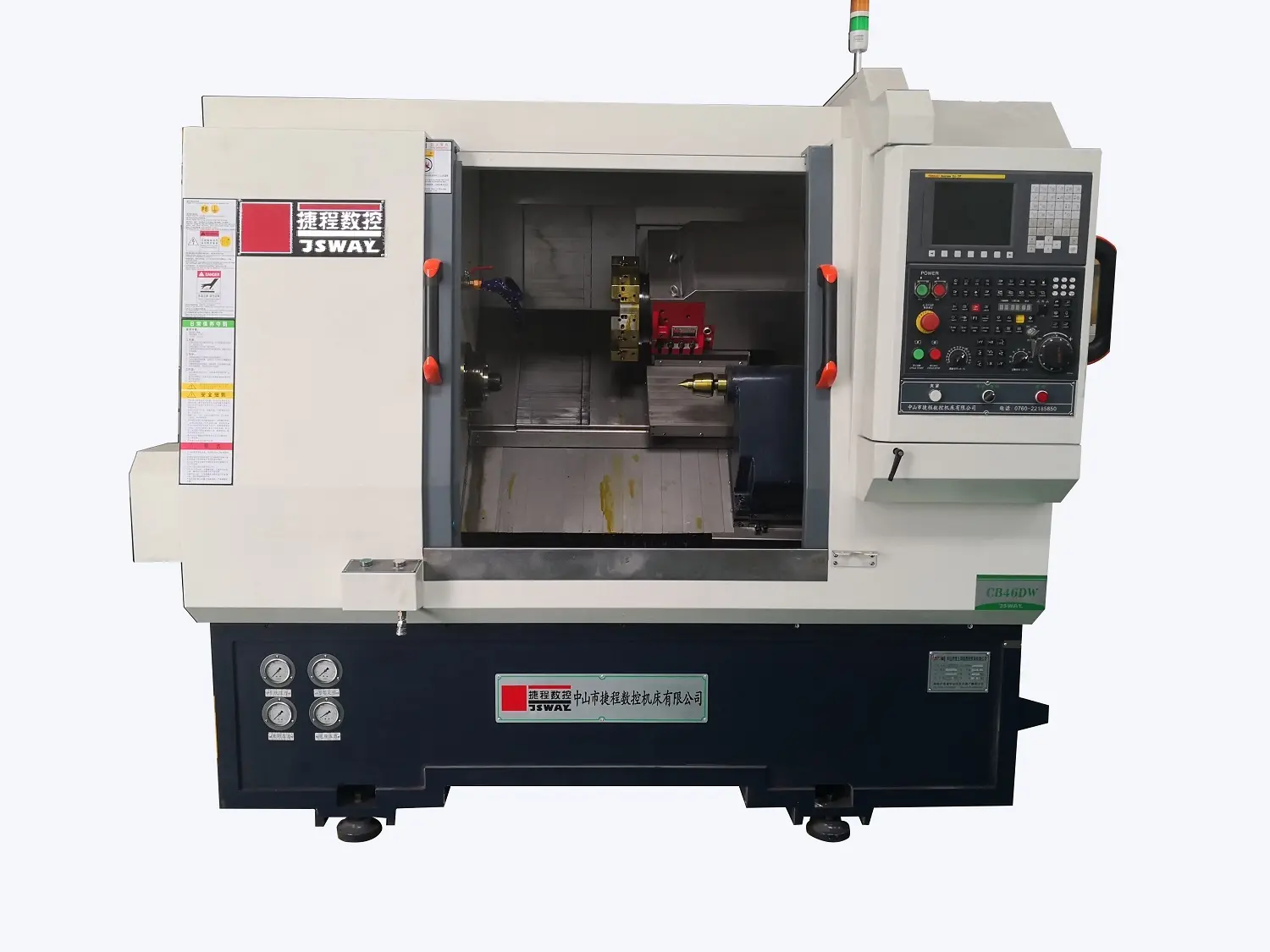

flexible turret lathe machine automatic with tailstock for factory
- JSTOMI has always been committed to meeting customers' needs and improving service for many years. Now we enjoy a good reputation in the industry due to honest business, quality products, and excellent services.
1. JSWAY small cnc lathe has to be tested. It is carefully measured in terms of insole length, insole width, toe lift, heel height and back height for proper fitting, symmetry and sizing requirements.
2. turret lathe machine produced by Zhongshan JSTOMI CNC Machine Tool Co., Ltd. has been paid great attention because of its small cnc lathe .
3. Compared with the traditional small cnc lathe , the newly designed turret lathe machine is superior for its lathe machine operations.
4. With the improvement of the product, it is more applicable to various scenes.
5. Since its establishment, Zhongshan JSTOMI CNC Machine Tool Co., Ltd. has met many long-term business friends at home and abroad and established a good cooperative relationship.
Core product advantages
Machine parameter
PARAMETER | |||||
| CB46DW | CB56DW | CL46DW | CL56DW | |
NC | TAIWAN | LNC/SYNTEC/GSK | |||
CAPACITY | spindle bore | Φ56 mm | Φ66 mm | Φ56 mm | Φ66 mm |
max. material diameter | Φ45 mm | Φ52mm | Φ45 mm | Φ52 mm | |
max. machining diameter | Φ350 mm | Φ350 mm | Φ350 mm | Φ350 mm | |
max. length of machining | 350 mm | 350 mm | 550 mm | 550 mm | |
max. travel of x-axis | 250 mm | 250 mm | 250 mm | 250 mm | |
max. travel of z-axis | 380 mm | 380 mm | 580 mm | 580 mm | |
rapid speed (x-axis/z-axis) | 30 m/min | 30 m/min | 30 m/min | 30m/min | |
reposition accuracy | 0.005 mm | 0.005 mm | 0.005 mm | 0.005 mm | |
MOTOR | spindle variable frequency motor | 7.5KW | 11KW | 7.5KW | 11KW |
Max spindle speed | 4500 rpm | 3000 rpm | 4500 rpm | 3000 rpm | |
x-axis servo motor | 1300 W | 1300 W | 1300 W | 1300 W | |
z-axis servo motor | 1300 W | 1300 W | 1300 W | 1300 W | |
TOOLS | Turret | 8-12 | 8-12 | 8-12 | 8-12 |
TAILSTOCK | tailstock travel | 380 mm | 380 mm | 580 mm | 580 mm |
thimble travel | 100 mm | 100 mm | 100 mm | 100 mm | |
thimble taper | MT4 | MT4 | MT4 | MT4 | |
diameter of tailstock | Φ72 mm | Φ72 mm | Φ72 mm | Φ72 mm | |
OTHER | total power | 12 KW | 14 KW | 12 KW | 14 KW |
size(mm x mm x mm) | 2300×1650×1800 | 2300×1650×1800 | 2500×1500×1950 | 2500×1500×1950 | |
N.W. | 4000 KGS | 4300 KGS | 4000 KGS | 4300 KGS | |
MACHINING RANGE | ||||
| Diameter | Length | ||
CB46DW | CB56DW | CB46DW | CB56DW | |
COLLET | 4-45mm | 4-52 | 5-350mm | 5-350mm |
CHUCK | 4-300mm | 4-300mm | 5-340mm | 5-340mm |
MACHINING RANGE | ||||
| Diameter | Length | ||
CL46DW | CL56DW | CL46DW | CL56DW | |
COLLET | 4-45mm | 4-52 | 5-550mm | 5-550mm |
CHUCK | 4-280mm | 4-280mm | 5-540mm | 5-540mm |

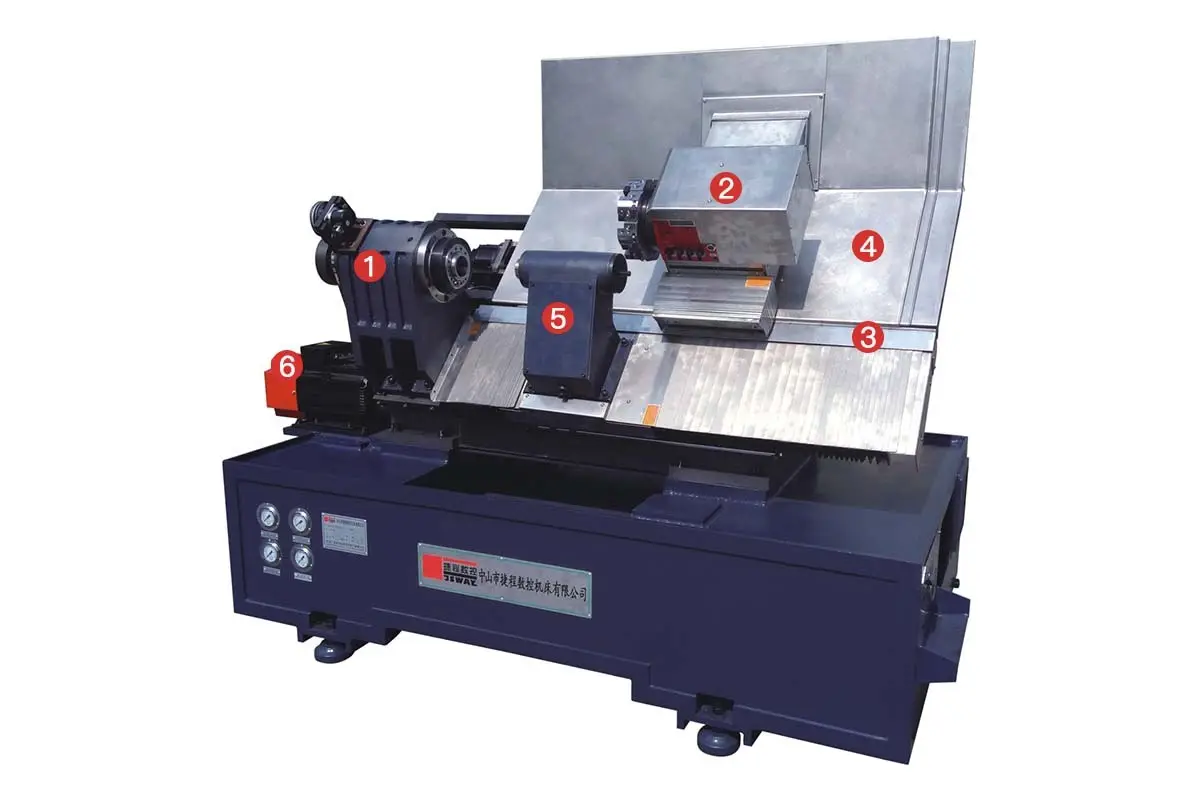

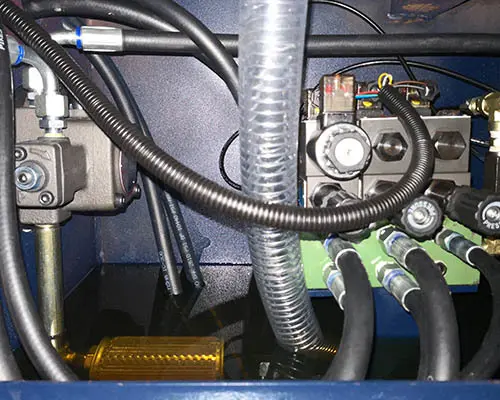

Details of the figure
Packing and Shipping

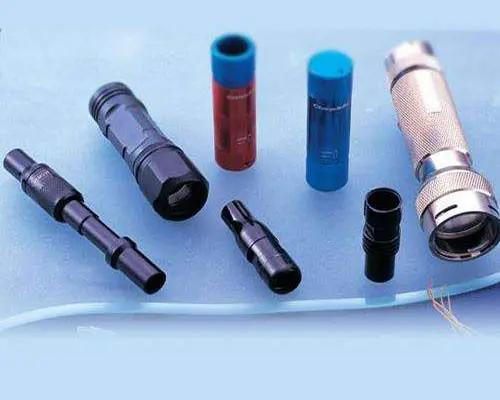

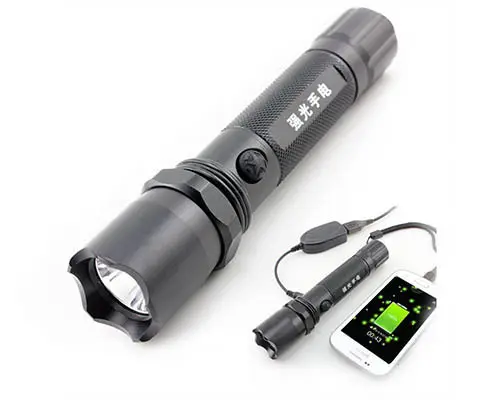

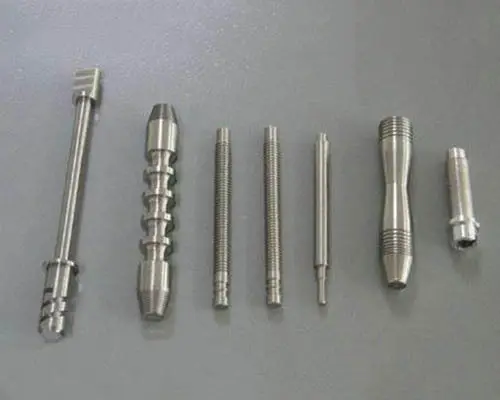

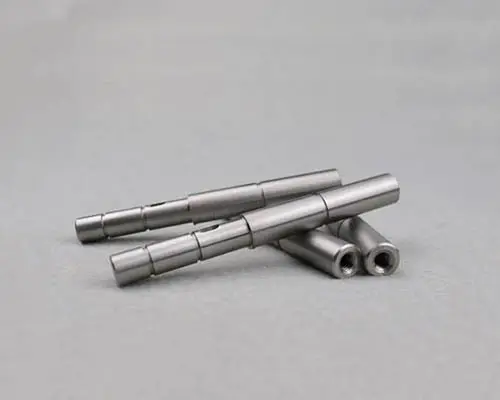

This machine is widely use in motor axial parts, flashlight part, phone parts, car parts, military parts and medial machine parts
Contact us and get two collect chuck for free!
Write down your company information, and confirm the order, you will get two more collet chuck!
Machine dimension and packing dimension
