Guangdong JSWAY CNC Machine Tool Co., Ltd. since 2004.

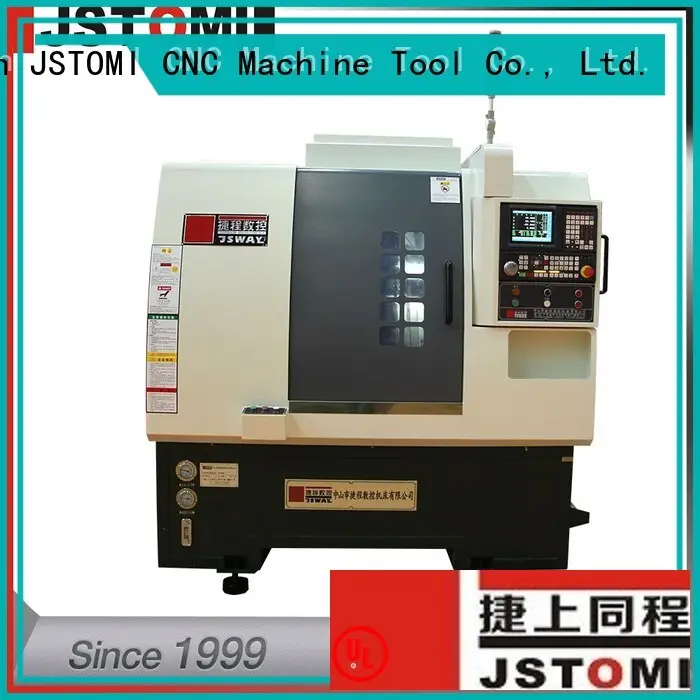

CZG46Y3 5-axis y-axis cnc lathe machine
1. JSWAY differentiates itself over the competition by using well-selected materials and lean production method.
2. Reliable quality and outstanding durability are the competitive advantages of the product.
3. The product has to be tested before coming into the market to ensure it meets all national and international regulations, giving you an assurance in its safety and overall performance.
4. Zhongshan JSTOMI CNC Machine Tool Co., Ltd. seeks to be a customer-driven supplier.
5-Axis Horizontal Type 3 In1 Mill Drill Lathe With
CE Certificate
Features of 5-axis y-axis cnc lathe machine tool CZG46Y3:
1. Y axis have engraving function.
2. This model is for turning, side milling and drilling.
3. Big space for machining, Z/X axis travel is long.
4. Y axis have 3 living tool; X axis can install 5-7 gang tools.
5. Japan gear, low sounds, high precision for Y axis living tool.
6. Spindle with C-axis indexing function.
7. living tool max speed is 4500rpm .
Technical parameter for 5-Axis y-axis cnc lathe machine tool CZG46Y3;
NC | TAIWAN/GUANGZHOU | LNC/SYNTEC/GSK |
spindle | TaiWan Posa | A2-5/46 spindle |
X.Z axis servo motor | Japan YASKAWA | 1300 W |
Y axis servo motor | Japan YASKAWA | 750W |
spindle servo motor | Japan YASKAWA | 4.4 KW |
spindle servo pack | Japan YASKAWA | 5.5 KW |
lead screw/lead rail | TaiWan HIWIN/PMI | C3 , level two |
bearing | Japan NSK,Germany FAG | P4 level |
coupler for lead Screw | from Germany | high Precision |
Parameter | ||
Capacity | spindle bore | ¢56 mm |
Max. material diameter | ¢45 mm | |
Max. machining diameter | ¢350 mm | |
Max. length of machining | 200 mm | |
Max. travel of x-axis | 720 mm | |
Max. travel of z-axis | 280 mm | |
Max. travel of Y-axis | 155 mm | |
rapid speed (x-axis/z-axis) | 36 /36/20 m/min | |
reposition accuracy | 0.005 mm | |
Motor | spindle servo motor | 4.4 KW |
spindle speed | 3000 rpm | |
X/Z-axis servo motor | 1300 W | |
Y-axis servo motor | 750 W | |
servo motor for power unit | 750 W/850 W | |
Tools | gang type tools | 5--7 |
total living power tools unit | side 3 | |
living tool holder size | ER20/25 | |
Other | total power | 7KW |
size( L x W x H ) | 2025*1385*1910 mm | |
N.W. | 2900 KGS |
1. We are a manufacturer of slant bed cnc lathe machine for 10 years ,Technology in the industry is come
out in front.
2. Our supply ability is sufficient to guarantee the customers demand.
3. Where you can buy all the Equipments for your market ,at the mean time the customers can enjoy the
long-term technical advisory services in our company.
4. Our products can be OEM ,meet your special needs.
5. Our Advantages and quick delivery, Competitive price ,high quality and long term service to out customers.
6. There is a long-term cooperation with the shipping company, can make the goods more quickly and
efficiently so that can delivered safely to the designated place as guest.
7. We will provide best after sale service for the guests which try my best to meet the requirements of
guests.
1. What accuracy can processed work piece reach?
Machining accuracy is very complicated for it can be affected by people, machine, methods, material
and environment, and machine itself is just one of them; besides, accuracy could mean flatness,
verticality, roundness, alignment or position degrees and so on, it’s hard to make it clear in general
concept. Thus pls provide us your machining drawing, we are very glad to design a specific process
solution for you and recommend you a proper cnc machine model.
2. You can hold much lathe knife? There are several options?
Slant bed lathe usually can install 5-7 tools, turret lathe can install 8/10 tools on turret,2-3 tools
on table.
3. How to choose the best fit for your machine?
If you have special request for the machine tool configuration,And the budget is limited,We can also
according to your need to change the configuration. Thus pls provide us your machining drawing,
we are very glad to design a specific process solution for you and recommend you a proper cnc
machine model.
4. About OEM
Our products can be OEM ,meet your special needs. We have a very rich experience and strong
machine tool research and development capability. We are very willing to offer you customized
highly-efficient equipment as long as you have certain amount of needs.
5.About Shipping
There is a long-term cooperation with the shipping company, can make the goods more quickly and
efficiently so that can delivered safely to the designated place as guest.
6. About supply ability
Our supply ability is sufficient to guarantee the customers demand. Where you can buy all the
Equipments for your market ,at the mean time the customers can enjoy the long-term technical
advisory services in our company.
7. About after sale service
We will provide best after sale service for the guests which try my best to meet the requirements
of guests.Our Advantages and quick delivery, Competitive price ,high quality and long term
service to out customers.
Welcome to contact us if need any more information.
