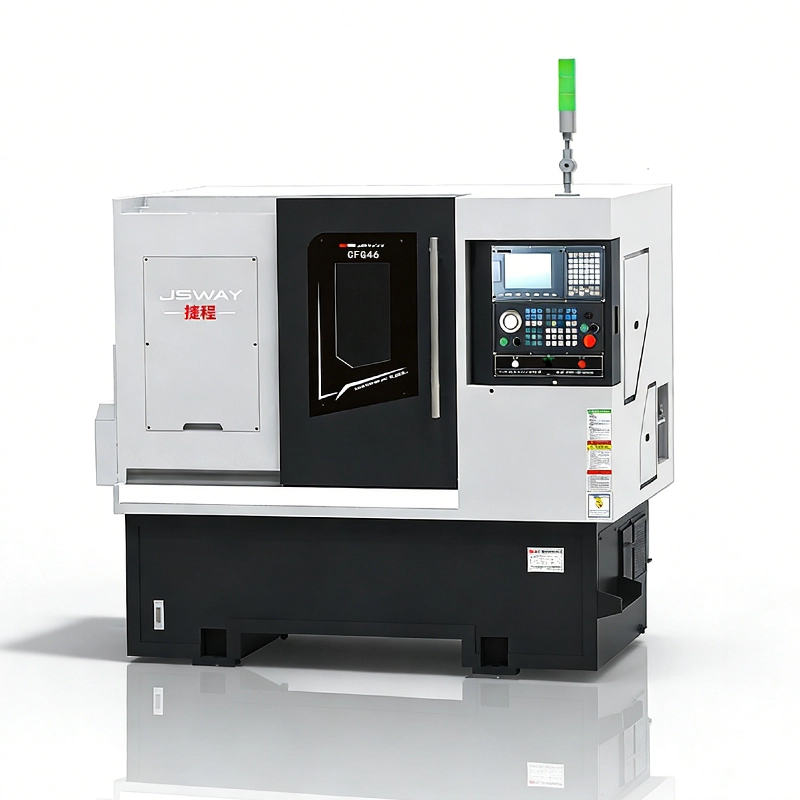

CFG46D/CFG56D 2 axis slant bed turret CNC lathe machine for sale
CFG46D/CFG56D 2 axis slant bed turret CNC lathe machine for sale
Core product advantages
Machine parameter
PARAMETER | |||
|
| CFG46D | CFG56D |
CAPACITY | Spindle bore | 56MM | 66 MM |
Max. material diameter: | 45MM | 52 MM | |
Max swing over bed | 350MM | 350mm | |
Max.lenght of machining | 100MM | 100 mm | |
Max. travel of X-axis | 715MM | 715 mm | |
Max. travel of Z-axis | 280MM | 280 mm | |
X-axis/Z fast moving | 30 M/MIN | 30 m/min | |
Reposition accuracy ( x/z) | x≤0.007 mm z≤0.015 mm | x≤0.007 mm z≤0.015 mm | |
MOTOR | Servo motor | 5.5KW | 7.5KW |
Spindle speed | 4500R/MIN | 3000 rpm/min | |
X-axis servo motor | 1.3KW | 1.3KW | |
Z-axis servo motor | 1.3KW | 1.3KW | |
TOOLS | Gang type tools | 6-8 | 6-8 |
OTHERS | Total installed capacity | 9 KW | 13 KW |
Size | 2025X1385X1910 | 2025X1385X1910 | |
N.W. | 2700KG | 2750KG | |
MACHINING RANGE | ||||
| Diameter | Length | ||
CFG46 | CFG56 | CFG46 | CFG56 | |
COLLET | 4-45mm | 4-52 | 5-100mm | 5-80mm |
CHUCK | 4-160mm | 4-200mm | 5-100mm | 5-80mm |

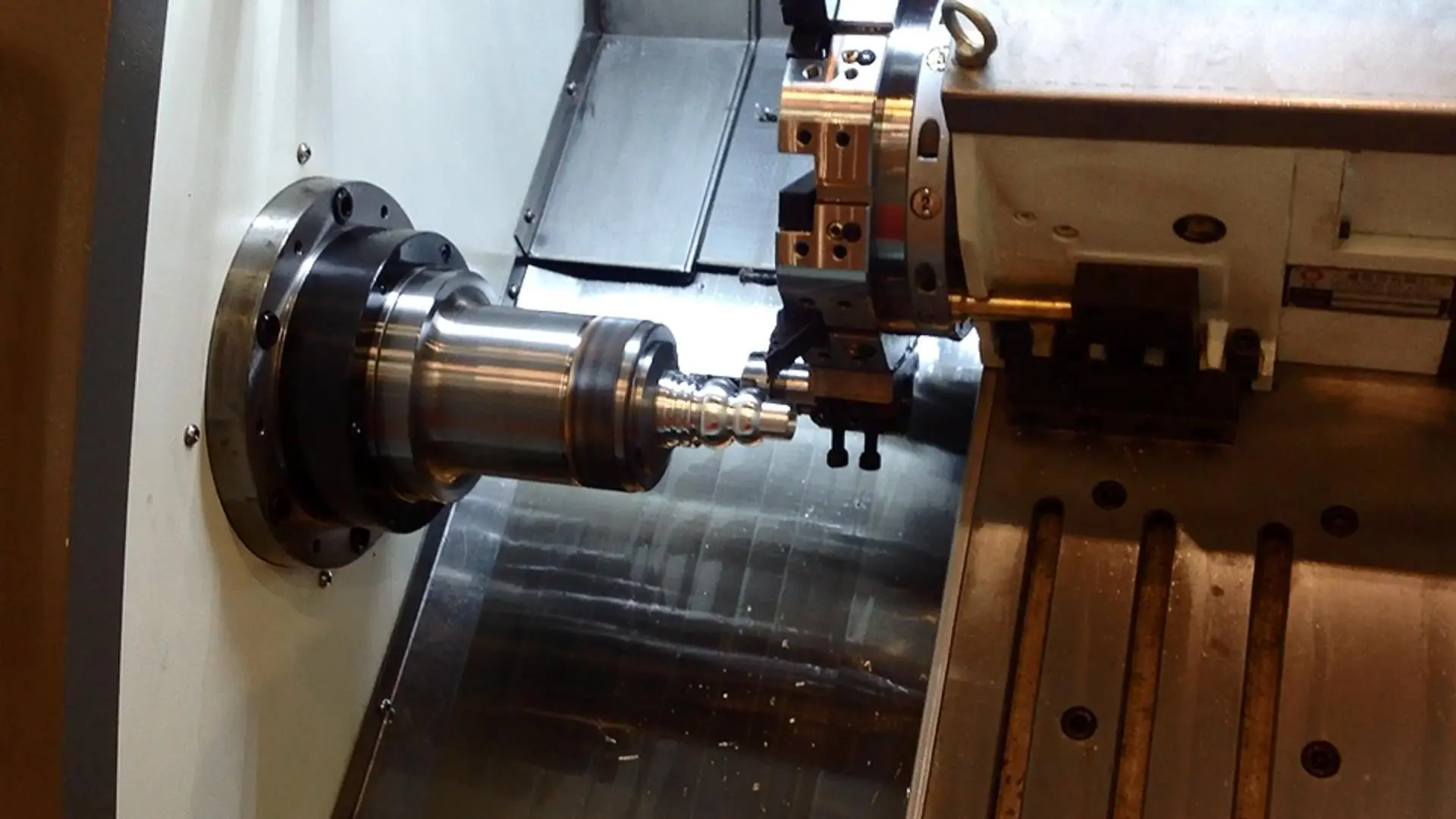

Details of the figure
Packing and Shipping
This machine is widely use in LED parts, smart phone parts, precision industrial, hydraulic parts, E-cigarettes, optical parts, Valve accessory, medical devices and aviation industrial.
Contact us and get two collect chuck for free!
Write down your company information, and confirm the order, you will get two more collet chuck!
Machine dimension and packing dimension
