CFG46/CFG56 2 axis gang type slant bed CNC lathe machine 1

CFG46/CFG56 2 axis gang type slant bed CNC lathe machine 2

CFG46/CFG56 2 axis gang type slant bed CNC lathe machine 3

CFG46/CFG56 2 axis gang type slant bed CNC lathe machine 4

CFG46/CFG56 2 axis gang type slant bed CNC lathe machine 5

CFG46/CFG56 2 axis gang type slant bed CNC lathe machine

46mm spindle bore, rapid speed upto 36M/min

Brand Name:

JSWAY

Place of Origin:

China

Model Number:

CFG46/CFG56

Certification:

CE/ISO

OEM/ODM Availability:

Delivery Time:

25days

Transportation:

By sea/train

Supply Ability:

150Set/month

MOQ:

1set

Payment Terms:

L/C, T/T,

Inquiry

Write a Review

Price term

EXW FOB CIF

Payment term

T/T L/C30\% deposite

MOQ

1 set

Nearest port

shenzhenguangzhouzhongshan

Small CNC Lathe for Sale - CFG46/CFG56 2 axis gang type slant bed CNC lathe machine

product-CFG46CFG56 2 axis gang type slant bed CNC lathe machine-JSWAY-img

Core advantages of the compact CNC lathe:

product-JSWAY-CFG46CFG56 2 axis gang type slant bed CNC lathe machine-img

High Precision Spindle

Sleeve-type spindle original from Taiwan, with 3 front&2 rear Japan ultra-high precision bearing to guarantee high rigidity and durable precision. Radial run out of spindle<3um Fastest spindle speed up to 5000rpm

Carriage

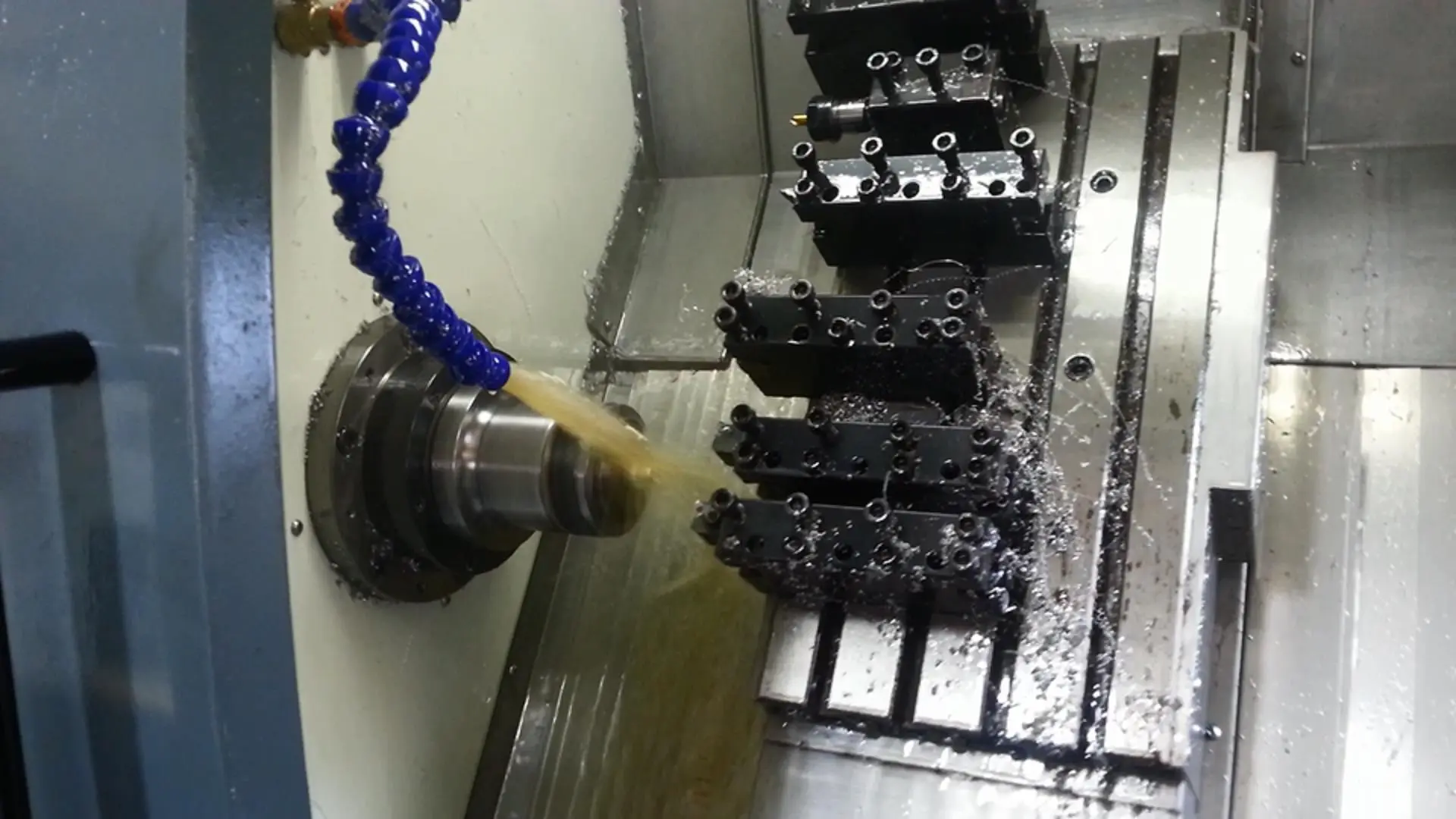

Z axis with leadscrew of 40mm, powerful & high speed X/Z axis use double bearing and pre-pull structure so that the machining accuracy stay the same no matter the machine is in warm or cold state. Carriage can install 5-8 tools. Center height of the tools is 60mm

Safe guard for X/Z axis

Full proof, well protection of linear screw & guide way

product-CFG46CFG56 2 axis gang type slant bed CNC lathe machine-JSWAY-img-1

Efficiency Machining

X/Z axis fastest moving speed up to 36M/min(we set 30M/min at factory) Can assembly auto-bar feeder and chips conveyor to implement high speed and high efficiency automatic machining.

Bed structure

45°slanting structure, smooth cuttings discharge. The base processed by gantry milling in one time, ensuring the precision of the machine.

product-JSWAY-CFG46CFG56 2 axis gang type slant bed CNC lathe machine-img-1

Spindle motor

Asynchronous Motor 5.5/7.5KW, accessory time 0 to 3500RPM only 1 second.

Machine parameter of the 2 axis Small CNC Lathe:

PARAMETER
CAPACITY		CFG46	CFG56
	Spindle bore	56MM	66 MM
	Max. material diameter:	45MM	52 MM
	Max swing over bed	350MM	350mm
	Max.lenght of machining	100MM	100 mm
	Max. travel of X-axis	715MM	715 mm
	Max. travel of Z-axis	280MM	280 mm
	X-axis/Z fast moving	30 M/MIN	30 m/min
	Reposition accuracy ( x/z)	x≤0.007 mm z≤0.015 mm	x≤0.007 mm z≤0.015 mm
MOTOR	Servo motor	5.5KW	7.5KW
	Spindle speed	4500R/MIN	3000 rpm/min
	X-axis servo motor	0.85KW	1.3KW
	Z-axis servo motor	0.85KW	1.3KW
TOOLS	Gang type tools	6-8	6-8
OTHERS	Total installed capacity	9 KW	13 KW
	Size	2025X1385X1910	2025X1385X1910
	N.W.	2700KG	2750KG

MACHINING RANGE
	Diameter		Length
	CFG46	CFG56	CFG46	CFG56
COLLET	4-45mm	4-52	5-100mm	5-80mm
CHUCK	4-160mm	4-200mm	5-100mm	5-80mm

Details of the figure

China cnc machine

China machine

Clean cabinet

product-CFG46CFG56 2 axis gang type slant bed CNC lathe machine-JSWAY-img-2

Duochuan spindle motor

English panel (1)

product-JSWAY-CFG46CFG56 2 axis gang type slant bed CNC lathe machine-img-2

Lathe machine cnc

Taiwan cylinder

X axis with brake

Z axis cover

product-CFG46CFG56 2 axis gang type slant bed CNC lathe machine-JSWAY-img-3

Posa spindle

Pressure gate

Packing and Shipping for the 2 axis compact cnc lathe:

This machine is widely use in LED parts, smart phone parts, precision industrial, hydraulic parts, E-cigarettes, optical parts, Valve accessory, medical devices and aviation industrial.

Write down your company information, and confirm the order, you will get two more collet chuck!

Machine dimension and packing dimension

product-JSWAY-CFG46CFG56 2 axis gang type slant bed CNC lathe machine-img-3
