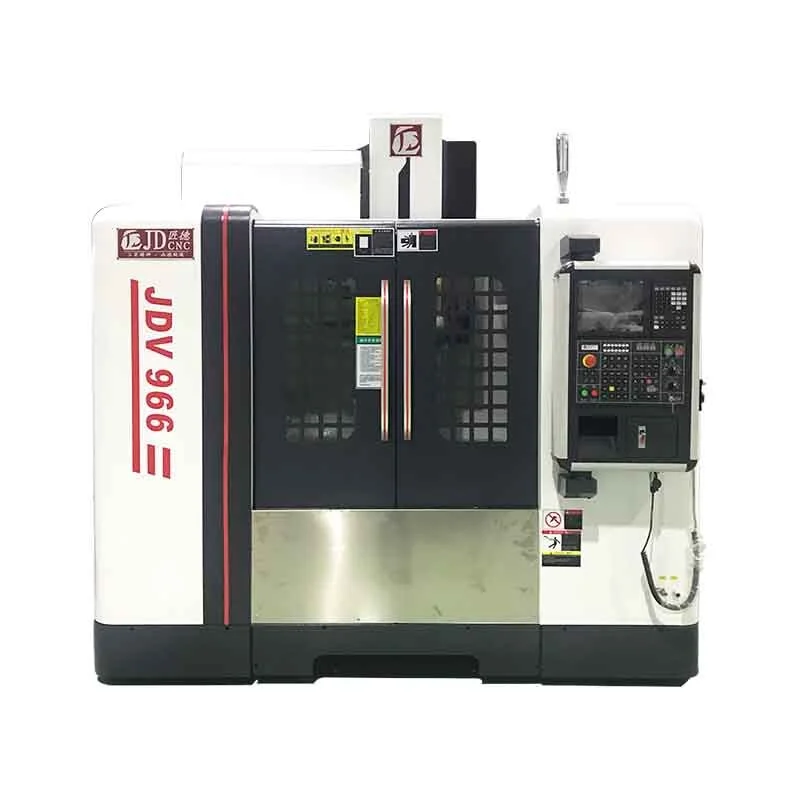

Vertical 3 Axis CNC Machining Center JDV966
Our 3-axis vertical machining centers provide the flexibility to attack single-piece production, development projects or complex, high volume mass production. Agility for high-speed hard milling; and more accuracy for complex 3-D geometry with JSWAY vertical CNC machining centers.
3-axis vertical machining offers even more functions:
1. Our high-speed spindle gives you unmatched speed, high feeds and tight accuracies for the most complex applications.
2. Our core cooling technology reduces thermal growth and makes sure that the first take is just as tight as the last.
3. Our advanced motion control and Super Geometric Intelligence 5 (SGI 5) gives you 20% to 60% faster cycle times, improving accuracy and surface finishes.
| 3 axis CNC vertical milling machine is designed to provide stiffness and rigidity for chatter-free cutting, agility expected from a hard milling machine and accuracies for tight-tolerance blends and matches typical of complex, 3-D contoured geometry associated with die/mold. | Designed to provide the power, speed,precision and versatility to handle large partmachining applications. The 3 axis vertical machining center JDV966 is designed to provide thepower, speed, precision and versatility tohandle large part machining applications aswell as big die and mold components. | Equipped with a 12000 RPM spindle and large workzone and heavy payload capacity, 3 axis CNC vertical milling machine can be productive in virtually any segment of the large VMC machine market. Standardly equipped with scale feedback and core – cooled ballscrews, the machine controls thermal growth achieving greater accuracy for longer term production performance. |
3 Axis CNC VERTICAL MILLING MACHINE PARAMETER | |||
| MODEL | UNIT | JDV966 | |
CONTROLLER | NC | SET | MITSUBICHI/FANUC |
| TOTAL AXIS | AXIS | 3 | |
TABLE | TABLE SIZE | MM | 1100*600 |
| TABLE LOAD | KG | 900 | |
| T-SLOT | MM | 5-18*100 | |
TRAVEL | X AXIS | MM | 900 |
| Y AXIS | MM | 600 | |
| Z AXIS | MM | 600 | |
SPINDLE | SPINDLE TAPPER | MM | BT40 |
| MAX.SPINDLE SPEED | RPM/MIN | 8000/10000/12000 | |
| SPINDLE DRIVEN TYPE | TYPE | belt type/direct connect | |
| SPINDLE CENTER TO MACHINE SPINE | MM | 650 | |
| SPINDLE END FACE TO TABLE | MM | 120-720 | |
GUIDE RAIL | X/Y/Z AXIS BALL SCREW | MM | 3616/3616/3616 |
| X/Y/Z AXIS GUIDE RAIL | linear guide rail | ||
MOTOR | X/Y/Z AXIS MOTOR CONNECT TYPE | TYPE | direct |
| SPINDLE MOTOR | KW | 7.5/11 | |
| X/Y/Z AXIS SERVO MOTOR | KW | 3/3/3 | |
| COOLANT PUMP MOTOR | W | 750W*2 | |
FEEDING RATE | X/Y/Z WORKING RATE | M/MIN | 10/10/10 |
| X/Y/Z RAPID SPEED | M/MIN | 30/30/30 or 48/48/48 | |
POWER/AIR PRESSURE | AIR PRESSURE | KG/CM² | 6kg/cm² |
| POWER SUPPLY | kva | 20kva | |
ACCURACY | POSITIONING ACCURACY | MM | ±0.005/300 |
| REPOSITIONING ACCURACY | MM | ±0.005/300 | |
SPEC | NET WEIGHT | T | 6.3 |
| DEMENSION | MM | 2500*3000*3000 | |
Standard Accessory
◪Rigidity tapping
◪Double working lamp
◪Spindle nose air blow
◪Auto lubrication
◪Heat exchange for eletrical cabinet
◪Warning lamp
◪Anchor bolt
◪Full cover
◪Coolant water system
◪Water tank and chips tank
◪Air gun
◪Cleanning water gun
◪Tool box
◪Manual
Feature of Vertical 3-Axis Machining Centers
1. The extra-wide and extremely stable base has 4 Linear ways providing solid support for the entire machine.
2. X, y axis with 4 and 6 blocks on Linear Guideway (850/1000). X, Y axis with 6 and 8 blocks on Linear Guideway (1200/1400).
3. High speed and precision ball screw.
4. High rigidity spindle.
5. Stability ATC system. (Auto tool change)
